DC DCS1800MHz & UMTS2100MHz diplexor
Parte No. | HT-DIP-1721D | |
Especificaciones eléctricas | ||
frecuencia gama | 1710-1880MHz | 1920-2170MHz |
Insertion pérdida | − 0.4dB Tipo (0.25 dB) | |
La ondul en Banda banda | − 0.3dB | |
Aislamiena aislamiena aislamiena aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento aislamiento | ≥60dB. | |
VSWR | − 1,25 | |
entermodulación | ≤-155dBc @ +43dBm x 2 | |
impedimpedimped | 50Ω | |
entrada poder | 250W | 300W |
DC Pass Current | Max2500mA(entre todos Puertos) | |
El rayo Protección protección | 8/20 10KA (CEI) 801-5) | |
MTBF horas | £500.000 | |
Especificación de medio ambiente | ||
Temperatura de funcionamiento gama | -20°C to +55°C | |
Temperatura de almacenamiento gama | -35°C to +75°C | |
Relative humedad | 0°C to +95°C | |
aplicaciones | IP66 | |
Especificaciones mecánicas | ||
Piezas de conexión | 3-DIN-F | |
peso | < 4 KG | |
DIM(L*W*H) | 201*164*52mm(sin Conectores) | |
embalaje | 1 PC in caja | |
Esquema esquema Unidad):
Dibujo del esquema (unidad doble):

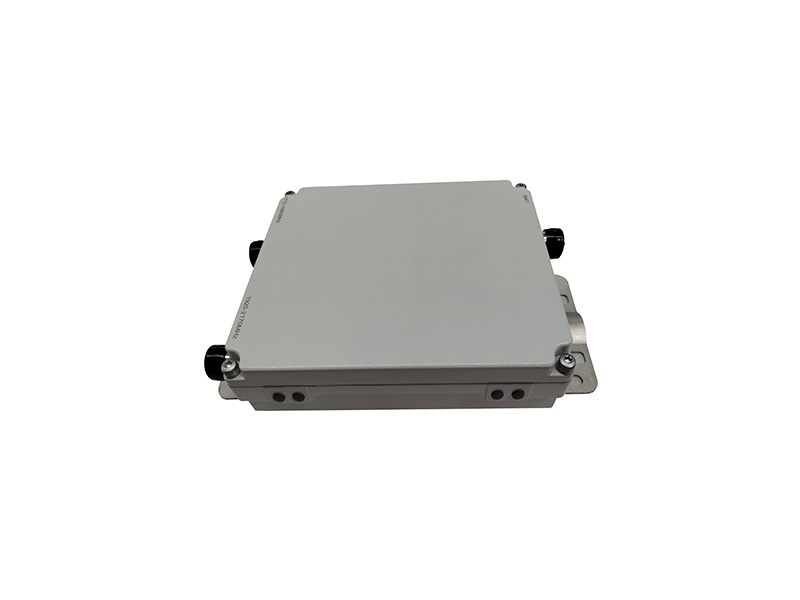

Imagen del producto:
